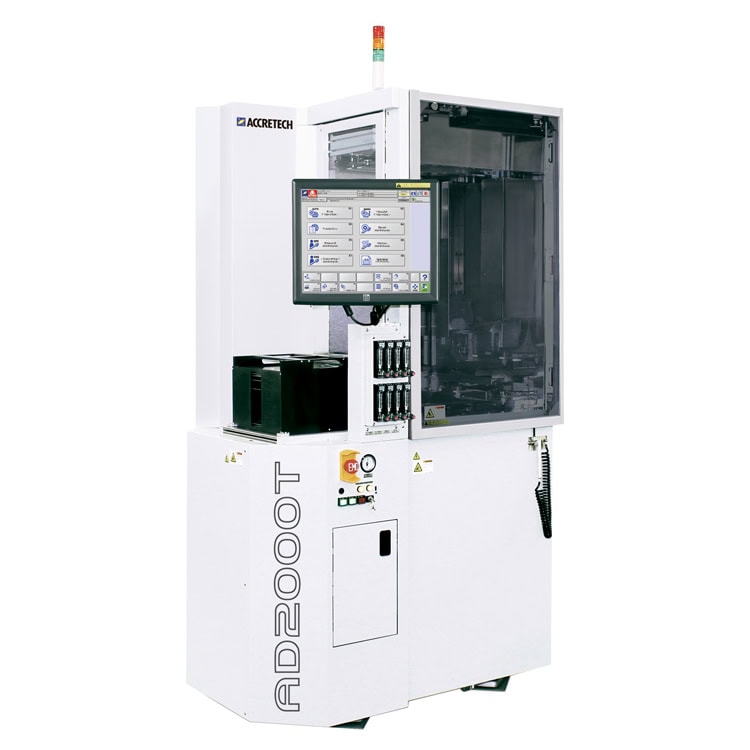

The Fully Automatic Dicing Machine for Maximum Precision with 200 mm Wafers
AD2000T/S* – Compact, Powerful, and Versatile – The New Standard in Dicing
Reduced Footprint with High Productivity
The AD2000T/S* sets new standards in space efficiency. The diagonal arrangement of the optional twin spindles allows for top precision in a minimal footprint. Install more machines in the same space – ideal for your production line.
Outstanding Cutting Quality and Throughput
Thanks to a powerful spindle (1.8 kW, up to 60,000 rpm) and optimized servo motors on all axes, the AD2000T/S* delivers extremely short cycle times. Synchronized X-, Y-, and Z-axis movement significantly reduces overall process time.
Versatile Applications
- The AD2000T/S* is the ideal solution for:
- Thin and thick substrates
- Hard and brittle materials (ceramics, glass, silicon)
- Electronic components and power semiconductors
Intuitive and Simple Operation
The AD2000T/S* is easily controlled via a 17-inch touchscreen with a modern GUI. Proven AD/SS series software ensures easy recipe switching and fast process adjustments.
Future-Proof Options
- Ionizer and barcode reader
- UV irradiation and blade re-dressing
- Support for single and twin spindle configurations (S and T)
- Storage for over 10,000 recipes
- Optimized vacuum control with up to 50% less air consumption
Your Key Benefits at a Glance
- Space-saving and modular design
- Very high throughput with minimal vibration
- Reliable performance even with difficult materials
- Intuitive operation and short learning curve
- Extensive options for customized process requirements
Want to see the AD2000T/S* in action or receive a free quote? Our experts are happy to help!
Technical Specifications
- Max. workpiece size: Ø200 mm
- Spindle options: Single or Twin Spindle (S/T)
- Spindle power: 1.8 kW at 60,000 rpm (optional 2.2 kW)
- Cutting speed (X/Y): 1000 mm/s (X), 300 mm/s (Y)
- Repeatability: ±0.001 mm
- Dimensions (W × D × H): 1080 × 1190 × 1900 mm
- Weight: approx. 1100 kg
