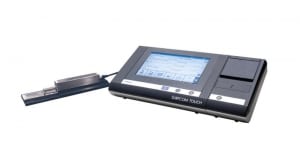

SURFCOM TOUCH 35 | 40 | 45
Portable surface measuring devices with bottom runner attachment
Entry-level model of surface measurements for various production applications, especially suitable for small and medium-sized companies.
Excellent price-performance ratio
Simple and self-explanatory user interface with 7-inch touch display
Depending on the application, up to three different measurement units can be combined with the evaluation unit
Automatic detection of the feed unit
User-friendly, multilingual user software
USB/Micro USB interface for extended data storage and transfer to the analytical software (supportware II)
Analysis unit with integrated printer
High-performance battery for mobile use
Simple and self-explanatory user interface with 7-inch touch display
Depending on the application, up to three different measurement units can be combined with the evaluation unit
Automatic detection of the feed unit
User-friendly, multilingual user software
USB/Micro USB interface for extended data storage and transfer to the analytical software (supportware II)
Analysis unit with integrated printer
High-performance battery for mobile use

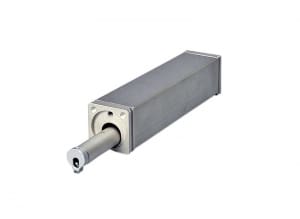

- Analytical unit 35 (standard)
Standard tracing driver for surface measurement in the longitudinal direction.
- Tracing driver 40 (retraction type)
Tracing driver for surface measurement in the longitudinal direction, with retract function to minimise wear on the probe tip.
- Tracing driver 45 (horizontal type)
Tracing driver for surface measurement in the transverse direction, ideal for hard-to-reach measuring positions such as crankshaft journals.
Area of application
The surface measuring instruments for the SURFCOM TOUCH 35 I 40 I 45 are particularly suitable for the measurement of medium and large workpieces during production due to their small, lightweight design and bottom runner system. All models feature simple and self-explanatory navigation menus to ensure easy and trouble-free operation. The measuring conditions and parameters for the respective workpiece can be saved and retrieved at any time.
