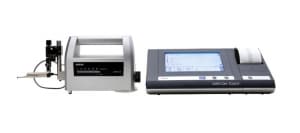

Portable surface measuring device with free probe system

Compact model for surface measurements in the production hall and measuring room — with high straightness precision and a wide measuring range.

Excellent price-performance ratio

Simple and self-explanatory user interface with 7-inch touch display

Resolution of up to 0.0001 μm and a maximum Z measuring range of 1000 μm (2000 μm/double probe arm length)

X axis guide accuracy of 0.3 μm with a measuring length of up to 50 mm

Different probe arms can be easily changed and calibrated

User-friendly, multilingual user software

USB/Micro USB interface for extended data storage and transfer to the analytical software (supportware II)
Analytical unit with integrated printer
High-performance battery for mobile use
  • High-precision and compact tracing driver
  • The tracing driver is characterised by a high guide accuracy of 0.3 μm / 50 mm.

Area of application
The large Z measuring range of the probe system enables flat as well as oblique and round surfaces to be measured and saves considerable time and effort to alignment of the workpieces. Deep measuring positions can be easily reached and even the smallest holes measured thanks to a wide range of compatible probe arms. These can be changed quickly and easily with a probe-arm spring clamp, without the need for tools.
An additional measuring stand can be used for tall workpieces
